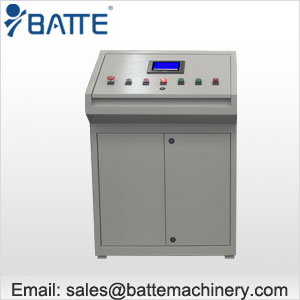

S series PLC gear pump control system introduction:
S series gear pump control system is a new generation of PLC control system which is specially designed for melt pumps. This series of PLC control system for extrusion line includes S10 Control System, S20 Control System, S60 Control System, and other types of pump control system etc.
PLC control system for extrusion line advantages:
* Industry standard leader
* Lower maintenance requirements
* Friendly human-machine interface
* Simple and reliable operation
* low running cost
S series PLC gear pump control system:
1) The S60 control system
* 2-4 pressure closed-loop controls
* Top and bottom limitation pressure alarm
*20-30 independent temperature control zones
* flow control
* automatic startup and shutdown
* touch screen man-machine interface
* continuous monitoring process value
* operation monitoring and troubleshooting
* for more complex extrusion or composite system
2) The S20 control system
*2 pressure closed-loop control
* Top and bottom limitation pressure alarm
*3 independent temperature control zones
* flow control
* automatic startup and shutdown
* touch screen human-machine interface
* continuous monitoring of process values
3) The S10 control system
* 2 pressure closed-loop control
* Top and bottom limitation pressure alarm
* flow control
* Start-up and shut-down automatically
* touch screen human-machine interface
