ZB-F melt pump for reactor

ZB-F melt pump for reactor.pdf

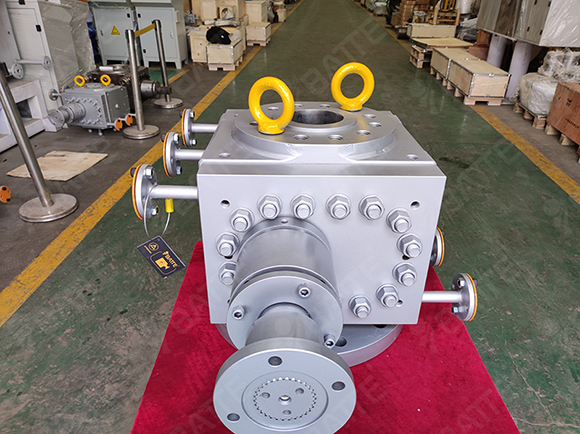

ZB-F melt pump for reactor      ZB-F gear pump for reaction kettle

ZB-F melt pump for reactor applications:
ZB-F series gear pump for reaction kettle is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series melt pump for reactor is primarily applicable for ABS, PS, PC, PET, SAN, PP, PE Biopolymers, etc.

melt pump for polymer reaction kettle/reactor

reactor melt discharge pump

These chemical metering melt pump for reactor is mainly used in chemical engineering, chemical fiber, spinning, oil, food industry, biology, medical, and so on. Such as dacron, acrylic fibers, high strength polyethylene, resin, medical, binding agent, polyol, oil and other industries. With the increasing development of mechanical industries, this melt pump is increasingly accepted and applied by domestic.

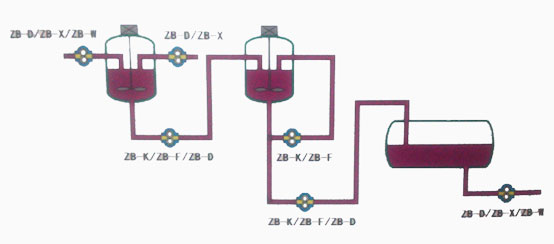

ZB-F melt pump for reactor applications



ZB-F gear pump for reaction kettle

Technical Parameter of reaction kettle gear pump:
◆Material for Melt Pump Body: stainless steel, carbon steel, hatelloy, monel metal
◆Material for Gear: M2 Steel (Optional), tool steel, nitrided steel, special materials or coating
◆Gear Tooth Type: straight gear, helical gear, herringbone gear
◆Material for Sliding Bearing: Tool steel, titanium tantalum alloy, silver nickel, special materials or abrasion-resistant coating
◆Shaft Sealing: Mechanical sealing, packing and spiral packing, combined
◆Heating System: Conduction oil heating or biphenyl gas heating
◆Model/Flow Range: 0.5CC-30000CC, 0.5cm3/rev - 12000cm3/rev

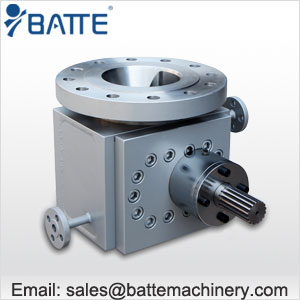

reactor melt pump

reactor melt pump

melt gear pump for reactor

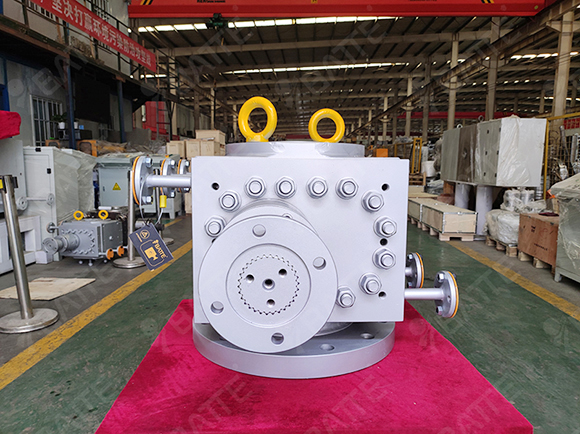

zb-f melt pump for reactor

Operating Parameter of Melt pump for reactor:
◆ Theory: Positive Displacement Gear Pump
◆ Structure: Gear Pumps
◆ Usage: Plastic, Rubber Pump and Fiber
◆ Power: Electric or Oil
◆ Fuel: No Need
◆ Pressure: High Pressure
◆ Volume Range: 0.5CC-30000CC
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C(750°F)
◆Cleaning Temperature: ≤450°C(850°F)
◆ Inlet Pressure: Vacuum--1.5MPa
◆Outlet Pressure: vacuum – 1.5MPa
◆Differential Pressure: ≤25MPa
◆ Outlet Pressure: 40Mpa

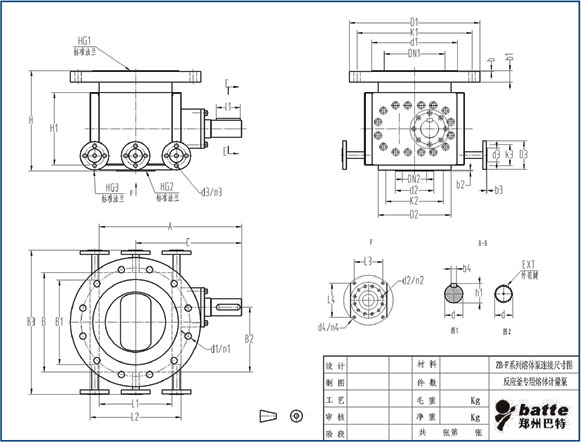

ZB-F gear melt pump for chemical reactor drawing

Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.6
0.6
0.37
0.5







≤400℃(750°F)




Outlet Pressure:  ≤ 40Mpa(6,000psi)

Outlet Differential Pressure: ≤ 275bar

ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30
Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
ZB-0.6
0.6
0.37
0.5
ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30



Features of chemical reactor melt pumps:
◆ Stabilizing outlet pressure;
◆ Improving the products quality;
◆ Increasing the extrusion output;
◆ Reducing unit energy consumption;
◆ Prolonging the service time of extruder.
