Volumetric screw feeder

Volumetric screw feeder.pdf

Volumetric screw feeder introduction and application:

Volumetric screw feeder, including single screw type and twin screw type feeder, is suitable for granule, pill material, poor liquidity powder, small sheet, and ensure the uniform and continuous feeding. Volumetric micro-batch feeders or volumetric micro feeder also available.

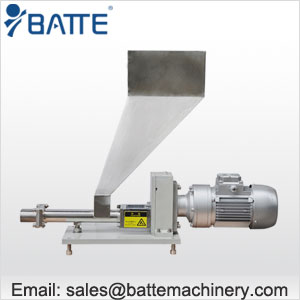

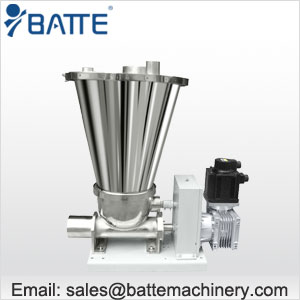

Volumetric screw feeder      Volumetric micro feeder


Volumetric screw feeder features:
◆ This volumetric feeder is easy to control, and has high intelligence program.
◆ You can choose different screw according with the different material to solve feed blocking.
◆ Beautiful appearance, and the rolled steel contacting with material is 304 stainless steel.
◆ Easy to disassembly and maintain.
◆ The feeding accuracy can be controled to ±1% in any case.
◆ Reduce labor strength and increase labor efficiency, inprove efficiency.
◆ Volumetric micro-batch feeders or volumetric micro feeder has higher feeding accuracy.

1) Single screw Volume feeding machine parameters:
Applicable material: pellet, free flowing powder, etc. Feeding hopper can be cylindrical or conical shape. Product Characteristics: reliable operation, compact design and easy maintenance.

Type
Screw
specification
Capacity
L/H
Driving
powerkw
Hopper
(optional)
BAT-VF-SS10
10
3-30
0.2
10L
BAT-VF-SS18
18
6-60
0.2
20L
BAT-VF-SS28
28
10-100
0.75
40-80L
BAT-VF-SS38
38
30-300
1.1
40-100L
BAT-VF-SS46
46
40-400
1.5
40-120L
BAT-VF-SS64
64
50-500
2.2
40-150L
Type
Screw
specification
Capacity
L/H
BAT-VF-SS10
10
3-30
BAT-VF-SS18
18
6-60
BAT-VF-SS28
28
10-100
BAT-VF-SS38
38
30-300
BAT-VF-SS46
46
40-400
BAT-VF-SS64
64
50-500

Notes: The feeding capacity and accuracy will be affected by different materials.

Twin screw Volume feeding machine technical data:
Applicable Material: applicable for all kinds of pellet, powder, fibrous materials, etc. Feeding hopper can be cylindrical or conical shape. Product Characteristics: reliable operation, compact design and easy maintenance.

Type
Screw specification
Capacity L/H
Driving powerkw
Hopper (optional)
BAT-VF-TS10
10
5-50
0.4
10L
BAT-VF-TS18
18
10-100
0.55
20L
BAT-VF-TS28
28
30-300
0.75
40-80L
BAT-VF-TS38
38
70-700
1.1
40-100L
BAT-VF-TS46
46
90-900
1.5
40-160L
BAT-VF-TS64
64
150-1500
2.2
40-200L
BAT-VF-TS78
78
300-3000
2.2
40-200L
Type
Screw specification
Capacity L/H
BAT-VF-TS10
10
5-50
BAT-VF-TS18
18
10-100
BAT-VF-TS28
28
30-300
BAT-VF-TS38
38
70-700
BAT-VF-TS46
46
90-900
BAT-VF-TS64
64
150-1500
BAT-VF-TS78
78
300-3000

Notes: The feeding capacity and accuracy will be affected by different materials.
