Loss in weight liquid feeder.pdf

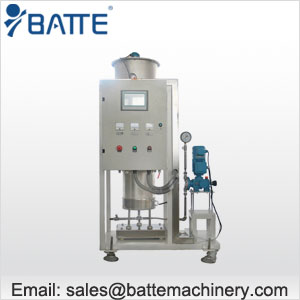

Liquid polymer feed system introduction:
Liquid weight feeder is suitable for liquid material with normal temperature & requiring heating or insulting. Liquid polymer feed system includes liquid loss in weight feeder and liquid metering gravimetric feeder.
1) Liquid weight feeder technical data:
Applicable Material: liquid material with normal temperature & requiring heating or insulting
Feeding Range: 2-8000L/H
Feeding Accuracy: ±1%
Driven system: Servo motor
Mixing Motor Power: 0.75kw
Temperature sensor type: K type thermocouple
Liquid heating power: 2KW (220V)
Batte insulation system can uniformly control the temperature.
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
Driven system
|
|
BAT-LF-PS-50
|
5-50
|
0.25
|
±1%
|
Servo motor
|
|
BAT-LF-PS-100
|
10-100
|
0.37
|
±1%
|
Servo motor
|
|
BAT-LF-PS-200
|
20-200
|
0.37
|
±1%
|
Servo motor
|
|
BAT-LF-PS-300
|
30-300
|
0.55
|
±1%
|
Servo motor
|
Type |
Capacity (L/H) |
Driving power (kw) |
BAT-LF-PS-50 |
5-50 |
0.25 |
BAT-LF-PS-100 |
10-100 |
0.37 |
BAT-LF-PS-200 |
20-200 |
0.37 |
BAT-LF-PS-300 |
30-300 |
0.55 |

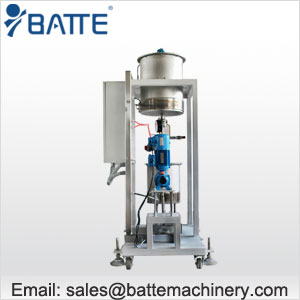

2) Liquid loss-in-weight metering feeder technical data:
Applicable Materials: liquid materials with normal temperature & requiring heating or insulting
Feeding Range: 2-8000L/H
Feeding Accuracy: ±0.5%
Driven system: Servo motor
Mixing Motor Power: 0.75kw
Temperature sensor type: K type thermocouple
Liquid heating power: 2KW (220V)
Batte insulation system can uniformly control the temperature.
|
Type
|
Capacity (L/H)
|
Driving power (kw)
|
Accuracy
|
Driven system
|
|
BAT-MF-PS-50
|
5-50
|
0.25
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-100
|
10-100
|
0.37
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-200
|
20-200
|
0.37
|
±0.5%
|
Servo motor
|
|
BAT-MF-PS-300
|
30-300
|
0.55
|
±0.5%
|
Servo motor
|
Type |
Capacity (L/H) |
Driving power (kw) |
BAT-MF-PS-50 |
5-50 |
0.25 |
BAT-MF-PS-100 |
10-100 |
0.37 |
BAT-MF-PS-200 |
20-200 |
0.37 |
BAT-MF-PS-300 |
30-300 |
0.55 |
