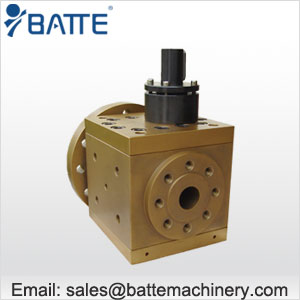

ZB-K polymer discharge gear pump introduction:
ZB-F series melt pump is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series of extrusion discharge pump for reactor is primarily applicable for ABS, PS, PC, PET, SAN, PP, PE Biopolymers, etc.
Technical Parameter of Polymer discharge gear pump:
◆ Material for Melt Pumps Body: stainless steel, carbon steel, hatelloy, monel metal
◆ Material for Gear: M2 Steel (Optional), tool steel, nitrided steel, special materials or coating
◆ Gear Tooth Type: straight gear, helical gear, herringbone gear
◆ Material for Sliding Bearing: Tool steel, titanium tantalum alloy, silver nickel, special materials or abrasion-resistant coating
◆ Shaft Sealing: Mechanical sealing, packing and spiral packing, combined
◆ Heating System: Electrical heating
Operating Parameter of extrusion discharge pump for reactor:
◆ Theory: Positive Displacement Gear Pump
◆ Structure: Gear Pump
◆ Usage: Plastic, Rubber Pump and Fiber
◆ Power: Electric or Oil
◆ Fuel: No Need
◆ Volume Range: 0.5CC - 12000CC
◆ Viscosity: ≤40000 Pa.s
◆ Working Temperature: ≤400°C(750°F)
◆ Cleaning Temperature: ≤450°C(850°F)
◆ Inlet Pressure: Vacuum--1.5MPa
◆ Outlet Pressure: vacuum – 1.5MPa
◆ Model/Flow Range: .0.5CC-30000CC, 0.5cm3/rev - 12000cm3/rev
◆ Differential Pressure: 40Mpa
|
Pump Model
|
Pump Volume (CC)
|
Driven Power (kw)
|
Heating Power (kw)
|
Working Temperature
|
Working Pressure
|
|
ZB-0.6
|
0.6
|
0.37
|
0.5
|
≤400℃(750°F)
|
Outlet Pressure: ≤ 40Mpa(6,000psi)
Outlet Differential Pressure: ≤ 275Mpa
|
|
ZB-1.2
|
1.2
|
0.75
|
0.5
|
||
|
ZB-2
|
2
|
0.75
|
1
|
||
|
ZB-5
|
5
|
1.1
|
2
|
||
|
ZB-10
|
10
|
1.5
|
2
|
||
|
ZB-20
|
20
|
2.2
|
2
|
||
|
ZB-31.5
|
32
|
3
|
2
|
||
|
ZB-50
|
50
|
4
|
3
|
||
|
ZB-100
|
100
|
5.5
|
4
|
||
|
ZB-150
|
150
|
7.5
|
5
|
||
|
ZB-90/90
|
200
|
11
|
6
|
||
|
ZB-100/100
|
250
|
15
|
8
|
||
|
ZB-100/100
|
315
|
18.5
|
8
|
||
|
ZB-115/115
|
500
|
22
|
12
|
||
|
ZB-130/130
|
800
|
30
|
15
|
||
|
ZB-160/160
|
1200
|
37
|
20
|
||
|
ZB-180/160
|
2500
|
45
|
24
|
||
|
ZB-180/180
|
3200
|
55
|
24
|
||
|
ZB-224/224
|
6000
|
75
|
30
|
|
Pump Model
|
Pump Volume (CC)
|
Driven Power (kw)
|
Heating Power (kw)
|
|
ZB-0.6
|
0.6
|
0.37
|
0.5
|
|
ZB-1.2
|
1.2
|
0.75
|
0.5
|
|
ZB-2
|
2
|
0.75
|
1
|
|
ZB-5
|
5
|
1.1
|
2
|
|
ZB-10
|
10
|
1.5
|
2
|
|
ZB-20
|
20
|
2.2
|
2
|
|
ZB-31.5
|
32
|
3
|
2
|
|
ZB-50
|
50
|
4
|
3
|
|
ZB-100
|
100
|
5.5
|
4
|
|
ZB-150
|
150
|
7.5
|
5
|
|
ZB-90/90
|
200
|
11
|
6
|
|
ZB-100/100
|
250
|
15
|
8
|
|
ZB-100/100
|
315
|
18.5
|
8
|
|
ZB-115/115
|
500
|
22
|
12
|
|
ZB-130/130
|
800
|
30
|
15
|
|
ZB-160/160
|
1200
|
37
|
20
|
|
ZB-180/160
|
2500
|
45
|
24
|
|
ZB-180/180
|
3200
|
55
|
24
|
|
ZB-224/224
|
6000
|
75
|
30
|
ZB-K polymer discharge gear pump application:
◆ Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆ High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆ Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆ Polyester for cotton-fiber, polypropylene and other chemical fiber melt.
