Continuous piston screen changer

Continuous piston screen changer.pdf

Continuous piston screen changer introduction:

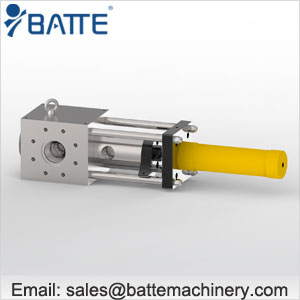

Continuous piston screen changer includes single piston screen changer and double piston screen changer. Double piston plastic extruder screen changer for extrusion applications includes double filter screens type, normal four filter blocks type, and four filter blocks type backflush screen changer.

1) Single piston screen changer for plastic extruder with two filter screens:

Product introduction:
◆ Adopts high-performance steel and special processing, heating processing technology, it specially designs for high pressure technological.
◆ High wear proof, high withstand voltage, high precision integrated design.
◆ At the pressure of 40-50Mpa, temperature of 300-400℃, it won’t affect other usability.
◆ Continuous piston screen changer suits for high pressure product manufacturing, especially for blown film, cast film, drawbench, pelleting etc. almost all of the thermoplastic plastics.

Features and advantages:
◆ With highly precise design, abrasive resistant, high pressure performance
◆ Plastic extruder screen changer works well even under the high temperature of 400℃ and high pressure of 40Mpa-50Mpa.
◆ Nonstop screen changing, leakfree design. Automatic exhaust design.

Single piston screen changer pictures, drawings, and technical data:

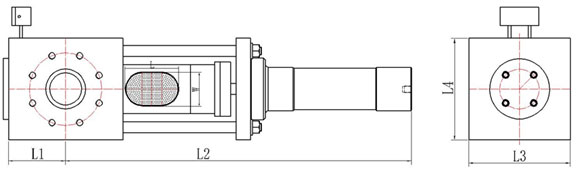

single piston screen changer drawing

a) ZB-SP-R series single column double work station screen changer:

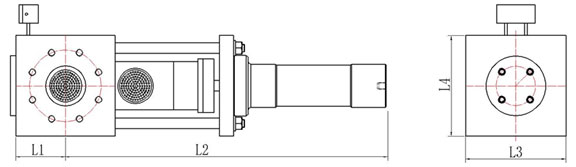

single column double work station screen changer

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
Ф(mm)
cm2
Quantity
V
KW
ZB-SP-R-100
50~150
100
700
180
180
Ф80
50
4
230/400
0.5/0.8
ZB-SP-R-120
100~260
110
730
210
210
Ф100
78
4
230/400
0.6/1.0
ZB-SP-R-145
200~380
125
800
240
240
Ф125
123
4
230/400
0.7/1.2
ZB-SP-R-170
290~600
135
860
260
260
Ф150
177
4
230/400
1.0/1.6
ZB-SP-R-195
400~820
150
960
300
300
Ф175
240
4
230/400
1.6/2.0
ZB-SP-R-220
600~1300
160
1150
330
330
Ф200
314
8
230/400
1.0/1.4
ZB-SP-R-250
800~2000
180
1250
380
380
Ф230
415
8
230/400
1.6/2.0
Type
Output
Kg/h
Size (mm)
L1
L2
L3
L4
ZB-SP-R-100
50~150
100
700
180
180
ZB-SP-R-120
100~260
110
730
210
210
ZB-SP-R-145
200~380
125
800
240
240
ZB-SP-R-170
290~600
135
860
260
260
ZB-SP-R-195
400~820
150
960
300
300
ZB-SP-R-220
600~1300
160
1150
330
330
ZB-SP-R-250
800~2000
180
1250
380
380



b) ZB-SP-E series single pillar double working positions screen changer:

single pillar double working position screen changer

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
L4
(mm)L×W
cm2
Quantity
V
KW
ZB-SP-E-120
180~450
130
870
210
210
100×145
124
4
230/400
0.8/1.2
ZB-SP-E-145
280~600
145
900
240
240
125×170
179
4
230/400
0.9/1.5
ZB-SP-E-170
600~1300
185
1100
260
260
150×230
296
4
230/400
1.6/2.2
ZB-SP-E-195
790~2500
200
1200
300
300
175×270
406
4
230/400
2.3/3.0
ZB-SP-E-220
990~3500
215
1300
330
330
200×300
514
8
230/400
2.0/2.5
ZB-SP-E-270
1570~4600
220
1350
380
380
230×310
600
8
230/400
2.0/2.5
ZB-SP-E-270
1950~6000
240
1450
410
410
250×345
737
8
230/400
2.5/3.0
Type
Output
Kg/h
Size (mm)
L1
L2
L3
L4
ZB-SP-E-120
180~450
130
870
210
210
ZB-SP-E-145
280~600
145
900
240
240
ZB-SP-E-170
600~1300
185
1100
260
260
ZB-SP-E-195
790~2500
200
1200
300
300
ZB-SP-E-220
990~3500
215
1300
330
330
ZB-SP-E-270
1570~4600
220
1350
380
380
ZB-SP-E-270
1950~6000
240
1450
410
410

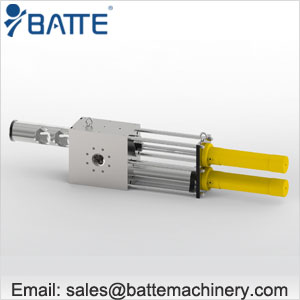

2) Double piston continuous screen changer for extrusion line with two filter screens:

Product introduction:
◆ This series continuous piston screen changer designed for double channel double filter screen structure, when change screen, one screen is replaced, the other one is non-stop material flow.
◆ The exhaust system is designed, which can fully exhaust the gas from material and waiting replaced multi-orifice, prevent changing screen process the gas was formed in product, improve product quality.
◆ Double channel design improves filter area, which can meet higher output and higher quality production demand.
◆ Larger filter area suits different material, different product extrusion production.
◆ With good sealing properties, rigid sealing, long service life.
◆ With the function of filling material, exhaust gas and pollution discharge which can insure change screen process non-stopped.
◆ According to customer’s requirements we can specific design, process different dimensions.
◆ Reasonable structure design, convenient operation, good effect.
◆ The same size cylinder screen can be processed in circle, curved, Oval, cylindrical shape etc.
◆ With safety cover design.
◆ Applications to: chemical fiber, blown film, flat film, cast film production, pipe ,sheet, wire rod, fiber’s manufacturer, pelletizing line, recycle, etc.

Plastic extruder screen changer features and advantages:
◆ Large filtering area, applicable to extrusion production of a wide range of polymers with different processing
◆ Unique sealing system ensures perfect sealing effect.
◆ Advanced designing and precise manufacturing, along with delicate gas exhausting system realize its dual function of filtering and gas exhausting.
◆ Both standard specification from 80mm to 250mm and special design upon customer’s specific request are available.
◆ Outside cover brings the machine good appearance and secure operation.
◆ The whole system boasts very reasonable design, easy operation and perfect performance.

Double piston screen changer pictures, drawings, and technical data:

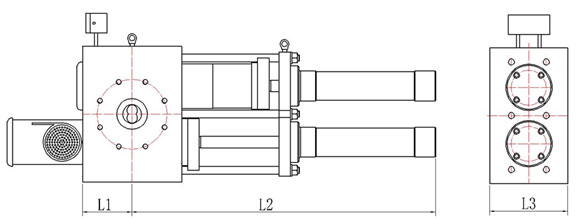

double piston screen changer drawing

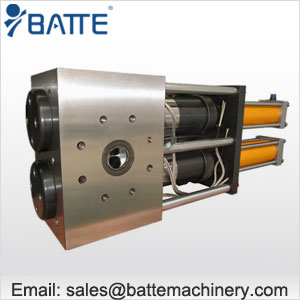

two cavities type double piston screen changer

a) ZB-DP-2R series double piston hydraulic screen changer with round screens:

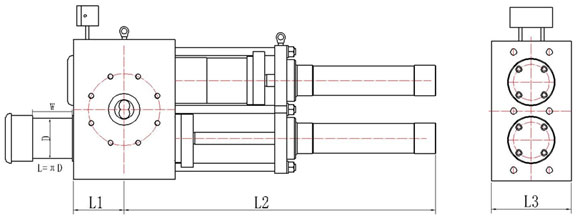

double piston hydraulic screen changer with round screens drawing

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
Ф(mm)
cm2
Quantity
V
KW
ZB-DP-2R-80
30~180
100
800
170
Ф60
28×2
6
230/400
0.5/0.7
ZB-DP-2R-100
80~280
110
830
200
Ф80
50×2
6
230/400
0.8/1.1
ZB-DP-2R-120
130~380
125
850
220
Ф100
78×2
6
230/400
0.9/1.2
ZB-DP-2R-145
300~700
165
1020
270
Ф125
123×2
6
230/400
1.4/1.8
ZB-DP-2R-170
400~1100
195
1120
310
Ф150
177×2
6
230/400
1.6/2.2
ZB-DP-2R-195
650~1500
220
1270
380
Ф175
240×2
6
230/400
2.5/3.5
ZB-DP-2R-220
850~1900
245
1350
410
Ф200
314×2
10
230/400
2.3/2.8
ZB-DP-2R-250
1100~2600
280
1500
460
Ф230
415×2
12
230/400
2.5/3.2
Type
Output
Kg/h
Size (mm)
L1
L2
L3
ZB-DP-2R-80
30~180
100
800
170
ZB-DP-2R-100
80~280
110
830
200
ZB-DP-2R-120
130~380
125
850
220
ZB-DP-2R-145
300~700
165
1020
270
ZB-DP-2R-170
400~1100
195
1120
310
ZB-DP-2R-195
650~1500
220
1270
380
ZB-DP-2R-220
850~1900
245
1350
410
ZB-DP-2R-250
1100~2600
280
1500
460



b) ZB-DP-2E series double piston hydraulic screen changer with elipse cavities:

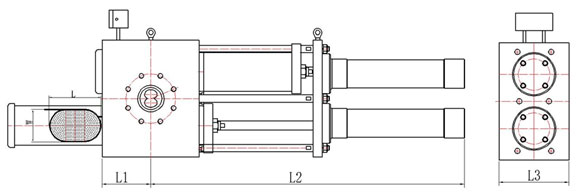

double piston hydraulic screen changer with elipse screens drawing



Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
(mm)L*W
cm2
Quantity
V
KW
ZB-DP-2E-120
200~800
150
850
220
100×145
124×2
6
230/400
0.8/1.2
ZB-DP-2E-145
400~1100
165
1020
270
125×170
179×2
6
230/400
1.4/2.0
ZB-DP-2E-170
680~1500
220
1300
310
150×230
296×2
6
230/400
1.6/2.2
ZB-DP-2E-195
1000~2600
240
1420
380
175×270
406×2
6
230/400
2.5/3.5
ZB-DP-2E-220
2300~4400
280
1665
410
200×300
514×2
10
230/400
2.5/3.2
ZB-DP-2E-250
2900~6000
310
1720
460
230×310
600×2
12
230/400
2.8/3.5
ZB-DP-2E-270
2900~6000
350
1900
500
250×345
737×2
12
230/400
3.2/4.0
Type
Output
Kg/h
Size (mm)
L1
L2
L3
ZB-DP-2E-120
200~800
150
850
220
ZB-DP-2E-145
400~1100
165
1020
270
ZB-DP-2E-170
680~1500
220
1300
310
ZB-DP-2E-195
1000~2600
240
1420
380
ZB-DP-2E-220
2300~4400
280
1665
410
ZB-DP-2E-250
2900~6000
310
1720
460
ZB-DP-2E-270
2900~6000
350
1900
500



3) Double piston large capacity screen changer:

Features and advantages:
◆ Large filtration reduces screen changing frequency, improved production efficiency
◆ Superior sealing system completely eliminates polymer leakage.

Applications:
This piston hydraulic screen changer is mainly used for Compounding (master batch, filter) fibers (monofilament) pelletizing (strands and under water) recycling of most polymers

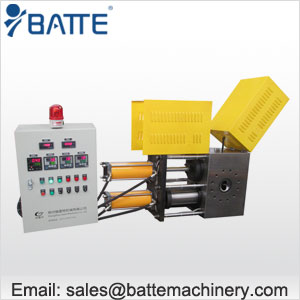

Continuous hydraulic double piston large capacity screen changer pictures, drawings, and technical data:

double piston large capacity screen  changer
large capacity double piston screen changer

large capacity double piston screen changer



Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
(mm)L*W

cm2
Quantity
V
KW
ZB-DP-2L-100
450~1200
110
700
200
251×80
200×2
6
230/400
0.8/1.1
ZB-DP-2L-120
800~1800
125
845
220
314×100
314×2
6
230/400
0.9/1.2
ZB-DP-2L-155
1000~2600
160
9400
270
408×130
530×2
6
230/400
1.4/1.8
ZB-DP-2L-175
2300~4400
185
1135
310
471×180
846×2
6
230/400
1.6/2.2
ZB-DP-2L-195
2900~6000
200
1270
380
533×190
1012×2
6
230/400
2.0/2.4
ZB-DP-2L-220
3900~10000
220
1400
410
596×200
1192×2
10
230/400
2.3/2.8
Type
Output
Kg/h
Size (mm)
L1
L2
L3
ZB-DP-2L-100
450~1200
110
700
200
ZB-DP-2L-120
800~1800
125
845
220
ZB-DP-2L-155
1000~2600
160
9400
270
ZB-DP-2L-175
2300~4400
185
1135
310
ZB-DP-2L-195
2900~6000
200
1270
380
ZB-DP-2L-220
3900~10000
220
1400
410



4) Double piston hydraulic screen changer with four cavities:

Features and advantages:
◆ The design is four channels and four filters. The four filters are working simultaneously without stopping material flowing or mass production. Thus the non-stop screen changing can be achieved.
◆ The exhaust air system is able to fully discharge the air inside the material or perforated plate which is to be replaced. It can avoid air forming in the product during screen changing, thus improve the product quality.
◆ Four channel design greatly increase filtering area, and meet the higher quality or quantity production demand.
◆ Bigger filtering areas are applicable for different material or extrusion products.
◆ It has better sealing characteristics with rigid sealing. The service life is longer.
◆ It has material filling, air exhausting and impure material discharging function, which guarantees continuous production during screen changing.
◆ It is applicable for high productivity, high efficiency, high quantity and continuous production of large extrusion plant.
◆ It has reasonable structure design, easier operation and better working effect.
◆ We can customize various sizes or standards based on the client’s requirement.
◆ It is configured with safety protection cover design.
◆ It is used for chemical fiber, blown film, flat film, cast film, pipe, plate, wire, fiber, granulating, recycling pelletizing, etc.

Double piston four cavities hydraulic screen changer picture, drawing, and technical data:

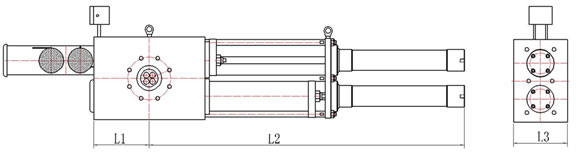

double piston hydraulic screen changer with four cavities drawing

double piston screen changer with four cavities drawing

Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
Ф(mm)
cm2
Quantity
V
KW
ZB-DP-4R-120
260~760
180
1160
220
Ф100
78×4
6
230/400
1.0/1.3
ZB-DP-4R-145
580~1400
225
1420
270
Ф125
123×4
6
230/400
2.0/2.4
ZB-DP-4R-170
750~2000
260
1595
310
Ф150
177×4
6
230/400
3.0/3.5
ZB-DP-4R-195
1350~3000
315
1890
380
Ф175
240×4
6
230/400
3.5/4.0
ZB-DP-4R-220
1650~3800
350
2100
410
Ф200
314×4
10
230/400
3.5/4.0
ZB-DP-4R-250
2100~5200
405
2395
460
Ф230
415×4
12
230/400
3.5/4.0
ZB-DP-4R-280
4500~8500
450
2760
500
Ф250
490×4
12
230/400
4.2/5.0
Type
Output
Kg/h
Size (mm)
L1
L2
L3
ZB-DP-4R-120
260~760
180
1160
220
ZB-DP-4R-145
580~1400
225
1420
270
ZB-DP-4R-170
750~2000
260
1595
310
ZB-DP-4R-195
1350~3000
315
1890
380
ZB-DP-4R-220
1650~3800
350
2100
410
ZB-DP-4R-250
2100~5200
405
2395
460
ZB-DP-4R-280
4500~8500
450
2760
500



5) Double piston four cavitie backflush screen changer





 Continuous piston screen changer.pdf



Inquiry Us

Melt pump is your extruder’s best friend

CONTACT US

  • Tel: +86 371 67991755
  • E-mail: sales@battemachinery.com
  • whatsapp: +86 158 38331071
  • After-sales Tel: +86 371 67997677 / 67997877
  • Mob: +86 15838331071
  • Address: No.11 Changchun Road, High & New Technology Development Zone, Zhengzhou, China.
