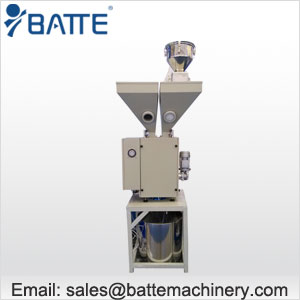

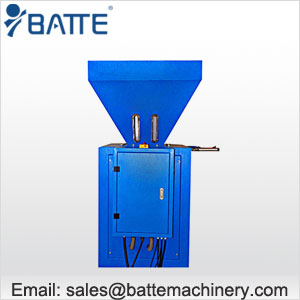

Multi-component gravimetric feeders or bio component loss in weight feeder introduction:
◆ Bio-component or multi-component formula feeder are applicable for simultaneous feeding of several material, moreover, one control system can concurrently govern bio-component or multi-component formula feeders.
◆ Three-component feeder, four-component feeding system, five-component feeding system. These feeders are suitable for multi-material at the same time with one control system for two feeders or more feeders, and are more suitable for production requirements, more smooth and convenient for achieving production process transition.
◆ In a word, our feeder system is more suitable for various production demands, reliable operation, convenient maintenance, and much easy for manufacturing technique transformation.
Multi-component gravimetric feeders or bio component loss in weight feeder applications:
This feeder belongs to static weighing metering, and it is suitable for intermittent feeding or single-pass feeding. It mainly used for the following material:
◆ Granules, diffluent powder.
◆ Regular and uniform granular material
◆ Strict with the material.
In other words, multi-component feeders is not suitable for powder and poor liquidity materials, because it has an bad affect on the environment when the material is powder.
Multi-component or bio component gravimetric feeders Characteristics:
◆ Wide range of application, suitable for plastic granules, power, calcium carbonate, talcum powder, resin membrane powder, flour, starch and so on.
◆ Convenient assembly and disassembly, easy to clean up.
◆ Technical strength, German original technical equipment, performance pre-sales guidance service.
◆ Stable discharging performance, high precision, wide range of output capacity.
◆ The static accuracy of loo-in-wight can reach 0.1%, repetitive dynamic accuracy can reach 0.3%.
◆ The control instrument of weight loss scale choose RWC-800CF, high precision, high anti-interference performance and more real-time.
◆ Sensor chooses Ronan high precision strain-gauge, aser seal welding has advantages of high precision and good reliability. Suitable for bad conditions.
◆ Flexible control system: this system can achieve manual & automatic control feeding, material makeup. Free changeover between manual mode and automatic mode.
|
Type
|
Feeding Rate
|
Feeding
Accuracy (%)
|
Blending Motor
Powder |
Internal Resolution
of Weighing Chip
|
|
BAT-LF-2
|
10-1000L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
BAT-LF-3
|
10-1500L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
BAT-LF-4
|
10-2000L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
BAT-LF-5
|
10-2500L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
BAT-LF-6
|
10-3000L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
BAT-LF-7
|
10-3500L/H
|
more or less 0.5%
|
0.75 KW
|
1/2 million
|
|
Type
|
Feeding Rate
|
Feeding
Accuracy (%)
|
|
BAT-LF-2
|
10-1000L/H
|
more or less 0.5%
|
|
BAT-LF-3
|
10-1500L/H
|
more or less 0.5%
|
|
BAT-LF-4
|
10-2000L/H
|
more or less 0.5%
|
|
BAT-LF-5
|
10-2500L/H
|
more or less 0.5%
|
|
BAT-LF-6
|
10-3000L/H
|
more or less 0.5%
|
|
BAT-LF-7
|
10-3500L/H
|
more or less 0.5%
|
Notes: The feeding capacity and accuracy will be affected by different materials.
