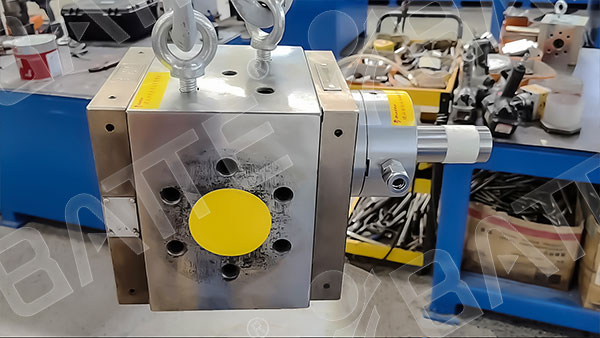

Melt pumps (also known as melt metering pumps) are installed between the extruder and the die head in strapping production lines. Their primary functions are to accurately meter, stabilize pressure, and homogenize the melt, significantly improving the thickness consistency, yield rate, and production efficiency of PET/PP strapping.
Precise Metering: As a positive displacement gear pump, it achieves flow control accuracy of ±1%, ensuring uniform strap thickness, weight, and width while reducing dimensional scrap.
Stable Pressure: It mitigates pressure fluctuations caused by extruder screw pulsations (reducing them to within ±1%), preventing surface wrinkling, burrs, or stretching and breakage.
Increased Output and Energy Savings: Reduces extruder backpressure, lightening the screw load, resulting in a 15%–30% increase in output and a 15%–25% reduction in energy consumption.
Melt Homogenization: Gear shearing promotes temperature and additive dispersion (e.g., color masterbatches, impact modifiers), enhancing tensile strength and appearance consistency.
Suitable Materials: Widely used for high-temperature, high-viscosity melts such as PET (plastic steel strapping) and PP (plastic packaging strapping), and supports production with recycled material blends.
The typical configuration is “extruder → melt pump → die → stretching and setting,” which is a key component of modern high-quality, high-speed strapping tape production lines. Especially in applications with stringent requirements for dimensional accuracy and consistency, it has evolved from an “optional” feature to a “standard” configuration.
