What are the connection methods between the melt pump and the extruder?

The melt pump is mainly used for the transportation, pressurization, and metering of high-temperature and high viscosity polymer melts, and it is mainly used in conjunction with extruders. It pressurizes the high-temperature plastic melt from the extruder, stabilizes the flow, and stably feeds it into the extruder mold. The stable melt pressure and flow capacity of the melt pump are superior to various types of extruders. Based on years of practical installation experience, seven connection methods between the melt pump and extruder have been summarized, and the specific installation methods are as follows:

1、 Horizontal installation

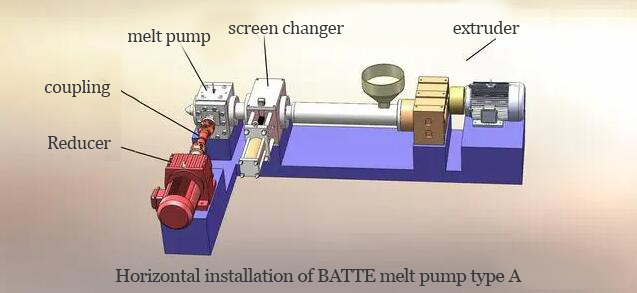

Horizontal installation of BATTE melt pump type A

2、 Install downwards

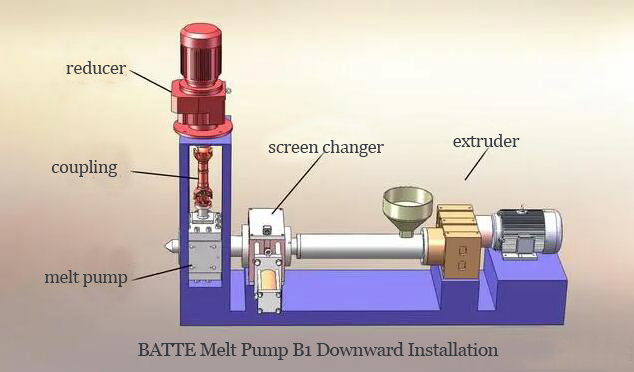

BATTE Melt Pump B1 Downward Installation

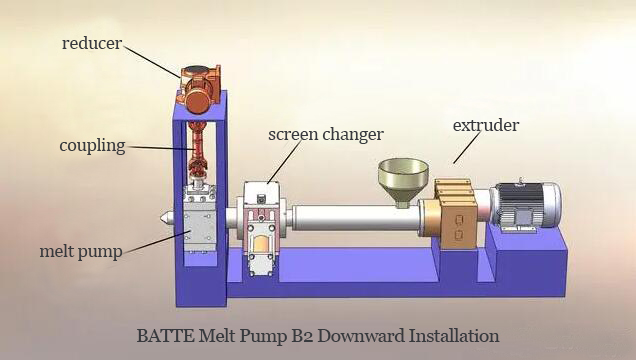

BATTE Melt Pump B2 Downward Installation

3、 Install upwards

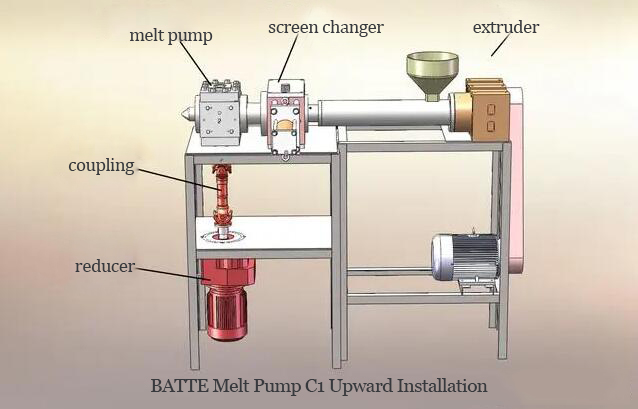

 BATTE Melt Pump C1 Upward Installation

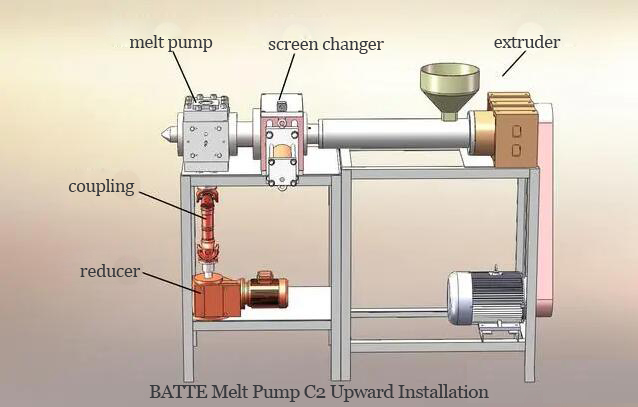

 BATTE Melt Pump C2Upward Installation

4、 Side installation

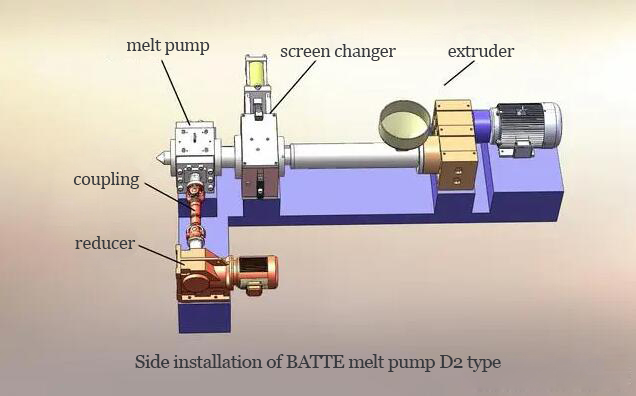

Side installation of BATTE melt pump D2 type
