3D printing consumables extrusion metering pump

The melt pump is mainly used for the transportation, pressurization, and metering of high-temperature and high viscosity polymer melts. It is widely used for extrusion molding of plastic, resin, rubber, and chemical fiber products. For example, industries such as granulation, film, pipe, plate, sheet, artificial fiber, optical fiber, medical plastic catheter, etc.

melt pump manufacturer

Characteristics of 3D printing consumables extrusion melt pump

1. Minimal pressure and flow pulsation can achieve linear output of flow, suitable for precision extrusion systems.

2. Adopting different structures and material configurations for different working conditions can better meet the personalized needs of users.

3. It can be applied to high temperature (350 ℃), high pressure (40MPa), and high viscosity (40000 Pass) working conditions.

4. Precision structure, high precision, and long service life.

high temperature melt gear pump

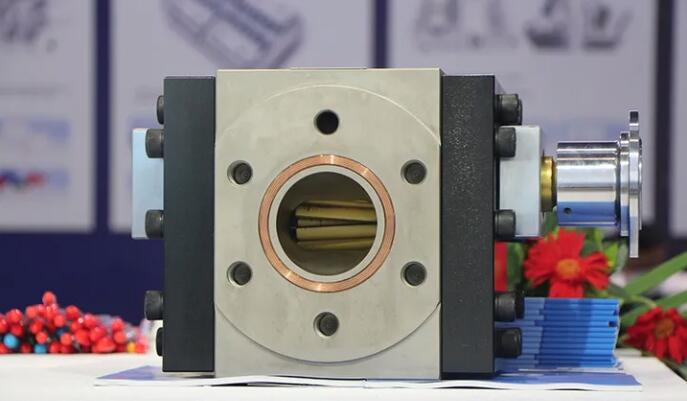

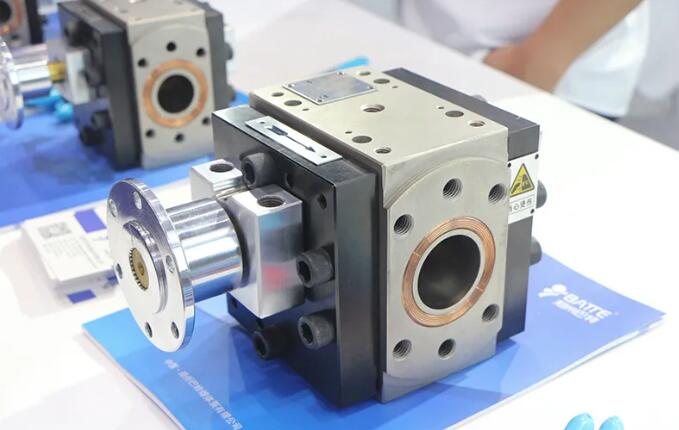

Structure and Materials of 3D Plastic Extrusion Melt Pump

Pump body: high-temperature tool steel, chromium nickel alloy steel

Gears: High temperature tool steel, nitrided steel, with straight or helical tooth shapes

Sliding bearing: high-temperature tool steel

Shaft seal: spiral mechanical seal, packing seal, spiral packing seal, triple seal

Heating method: electric heating

Specification/flow range: 1CC-8000CC

3D printing material melt pump

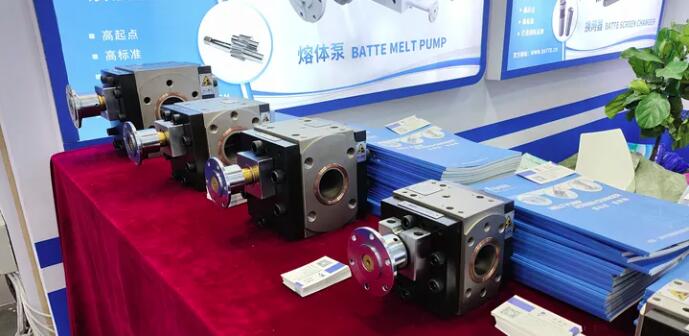

BATTE Melt Pump Company is familiar with the extrusion processes of various plastic and rubber materials, and has extensive experience in the application of melt pumps in extrusion systems. It can provide multiple types of melt pumps for extrusion systems such as various sheets, plates, pipes, films, wire drawing, underwater cutting, masterbatch extrusion granulation, rubber preforming, etc., widely used in various polymer polymer materials.
