Vacuum kettle bottom discharge pump is suitable for high temperature, high viscosity polymer melt reaction conveying which requires high output pressure, such as resin, chemical fiber and other industries. Generally installed in the bottom of the kettle, as a material pump to use, this type of pump inlet design is relatively large, to facilitate the bottom of the kettle large flow rate of feeding; at the same time, has a good self-priming performance, can be applied to the polymer materials under vacuum reaction conditions of transportation, pressurization.

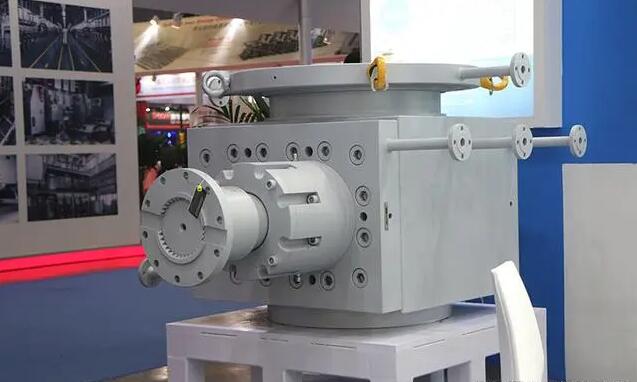

reactor kettle melt pump
Structure of vacuum reactor kettle melt pump
Rotor type: helical tooth or straight tooth cylindrical gears
Heating method: thermal medium heating
Seal structure: melt dynamic seal + packing seal, high temperature resistant packing seal.

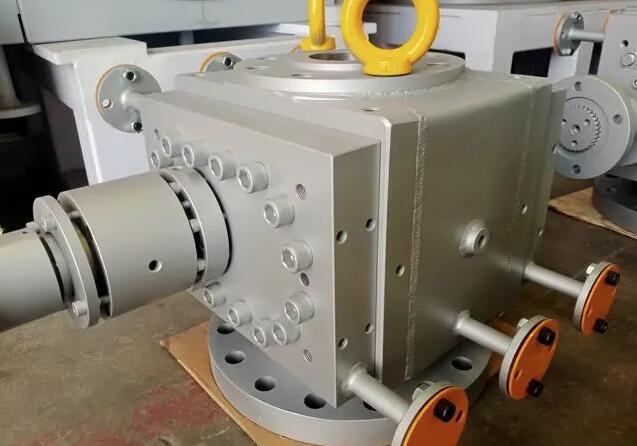

stainless steel gear melt pump reaction kettle
Material of China melt pump for reactor kettle
Pump body: stainless steel/alloy steel/corrosion-resistant alloy
Gear: Nitrided steel / tool steel / stainless steel + coating / corrosion-resistant alloy
Slide bearing: tool steel / alloy steel / stainless steel + coating / corrosion-resistant alloy

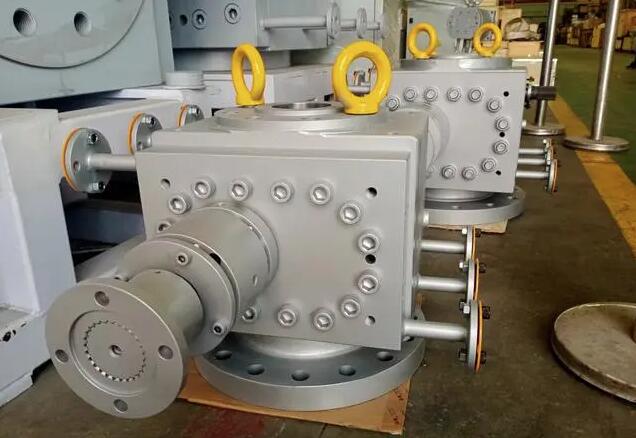

melt pump for polymer reaction kettle/reactor
Vacuum reaction kettle gear melt pump technical parameters
Conveying medium viscosity: low viscosity 0.01Pa.s ~ high viscosity 40000Pa-s
Suction pressure: Vacuum (-0.05 ~ -0.09MPa) ~ 4MPa
Output pressure: 0～35MPa
Differential pressure: 25MPa
Operating temperature: ≤350°C
Heating method: heat medium jacket/runner heating/electric heating
Heat medium pressure: ≤1.6MPa

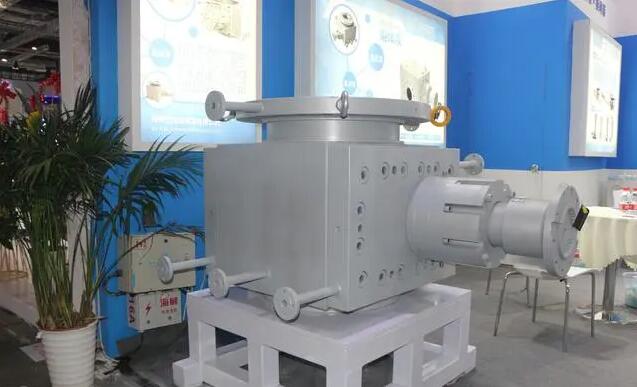

gear melt pump for reaction kettle
ZB-F series melt pump for reaction kettle installation
Stainless steel gear melt pump reaction kettle is generally installed in the bottom of reaction kettle, adopting the installation form of motor+reducer+universal coupling. Melt gear pump belongs to volumetric forced conveying pump, and the output flow can be adjusted by adjusting the rotational speed of the pump, and it is recommended to adopt the method of frequency conversion speed control, which can realize the nearly linear flow output of the gear pump.

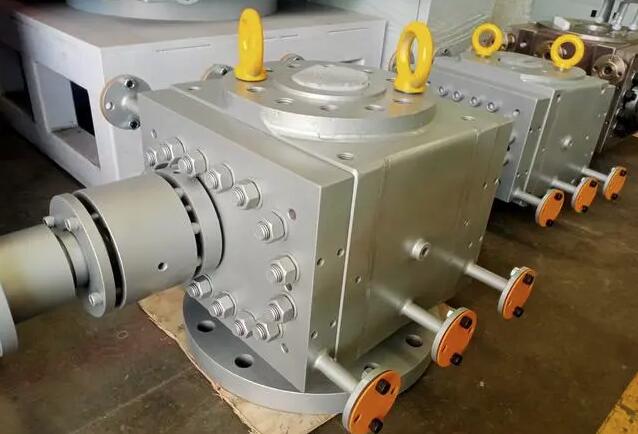

China melt pump for reactor kettle
BATTE melt pump is a professional production of melt gear pumps and related products manufacturing enterprises, can provide the bottom of the reactor kettle melt pump specifications: 5cc / r-12000cc / r. The company is familiar with a number of industries, a variety of polymer production process, according to the user's actual working conditions to provide a complete set of selection, configuration and solutions.
