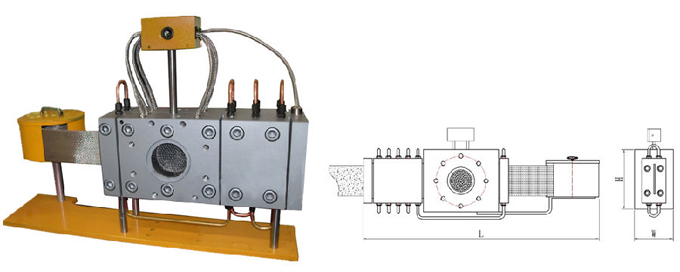

Automatic mesh belt type continuous screen changer

　
Automatic mesh belt type continuous screen changer

Features and advantages:

Screen design with high precision , abrasive resistance, high pressure performance
It works well even under the high temperature of 400℃and high pressure of 40-50Mpa.
Nonstop and stable screen changing, leakage-free, automatic exhaust

Application:

Most thermoplastic polymers for high pressure production process, especially for blown film, casting film, compounding.

Technical data:

Type	Screen D&A		Overall dimension (mm)				Heating power (KW)	Output (Kg/h)
	Ф(mm)	cm2	L	W	H	L1
ZB-SP-R-80	Ф60	28	180	170	170	700	2.0/3.0	30-180
ZB-SP-R-100	Ф80	50	220	200	200	810	3.0/4.2	80-280
ZB-SP-R-120	Ф100	78	250	220	220	970	4.2/6.2	220-480
ZB-SP-R-155	Ф130	133	320	220	220	1100	6.0/8.2	300-700
ZB-SP-R-170	Ф145	165	370	310	310	1320	7.4/9.5	400-1100
ZB-SP-R-195	Ф165	214	400	380	380	1470	8.5/10.8	650-1500
ZB-SP-R-220	Ф180	254	440	410	410	1620	9.6/12.5	800-1800
Note: The specifications are subject to change without prior notice
