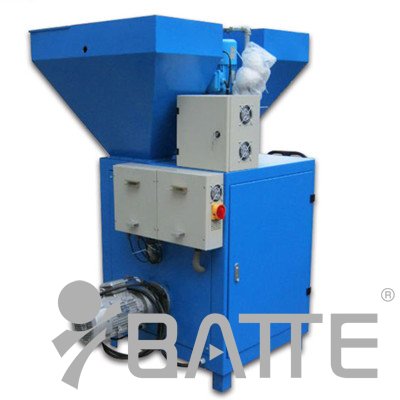

Single screw weight-loss metering feeding machine

Author：Batte Time:2015-04-24

Application:

This feeder belongs to static weighing metering, and it is suitable for intermittent feeding or single-pass feeding. It mainly used for the following material:
1. Granules, diffluent powder.
2. Regular and uniform granular material
3. Strict with the material.
In other words, multi-component feeders is not suitable for powder and poor liquidity materials, because it has an bad affect
on the environment when the material is powder.

Characteristics:

1. Wide range of application, suitable for plastic granules, power, calcium carbonate, talcum powder, resin membrane powder, flour, starch and so on.

2. Convenient assembly and disassembly, easy to clean up.

3. Technical strength, German original technical equipment, performance pre-sales guidance service.

4. Stable discharging performance, high precision, wide range of output capacity.

5. The static accuracy of loo-in-wight can reach 0.1%, repetitive dynamic accuracy can reach 0.3%.

6. The control instrument of weight loss scale choose RWC-800CF, high precision, high anti-interference performance and more real-time.

7. Sensor chooses Ronan high precision strain-gauge, aser seal welding has advantages of high precision and good reliability. Suitable for bad conditions.

8. Flexible control system: this system can achieve manual & automatic control feeding, material makeup. Free changeover between manual mode and automatic mode.

Parameters:

Type	Feeding Rate	Feeding Accuracy (%)	Blending Motor Powder	Internal Resolution of Weighing Chip
BAT-LF-2	100-1000L/H	more or less 0.5%	0.75 KW	1/2 million
BAT-LF-3	150-1500L/H	more or less 0.5%	0.75 KW	1/2 million
BAT-LF-4	200-2000L/H	more or less 0.5%	0.75 KW	1/2 million
BAT-LF-5	250-2500L/H	more or less 0.5%	0.75 KW	1/2 million
BAT-LF-6	300-3000L/H	more or less 0.5%	0.75 KW	1/2 million
BAT-LF-7	350-3500L/H	more or less 0.5%	0.75 KW	1/2 million

Notes: The feeding capacity and accuracy will be affected by different materials.
