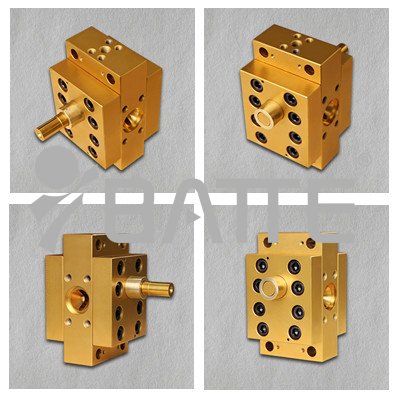

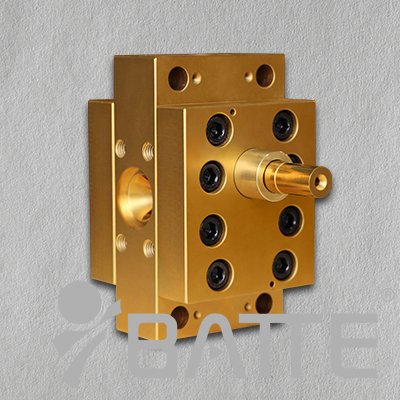

High temperature melt pump
Author：Batte Time:2015-12-08
Introduction of High temperature melt pump:
◆High temperature melt pump is used for transportation, pressurization or the metering of the high temperature and high viscosity polymer melt.This melt pump is applicable for engineering plastic or blown film technique.
◆High pressure melt pump have a unique positive displacement design which provides consistent, accurate polymer delivery under varying extruder output conditions of pressure, temperature and viscosity. With melt pump providing the pressure between the extruder and the die, extruder parameters can be configured to provide a homogeneous melt at increased throughout and tighter gauge tolerances.
Application of High temperature melt pump:
◆Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆Polyester for cotton-fiber, polypropylene and other chemical fiber melt.
Technical Parameter of High pressure melt pump:
◆Melt Pump Body: CPM stainless steel, Ti-Ta alloy
◆Gear: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
◆Sliding Bearing: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
◆Shaft Sealing: Screw sealing
◆Heating System: Electrical heating
Operating Parameter of High temperature melt pump:
◆Theory: Positive Displacement Gear Pump
◆Structure: Gear Pump
◆Usage: Plastic, Rubber Pump and Fiber
◆Power: Electric or Oil
◆Fuel: No Need
◆Volume Range: 5CC - 3200CC
◆Viscosity: ≤20000 Pas
◆Working Temperature: ≤510°C(950°F)
◆Cleaning Temperature: ≤590°C(1100°F)
◆Outlet Pressure:≤70Mpa
◆Differential Pressure: ≤50Mpa
> > > Click to view more of the working principle of the melt pump

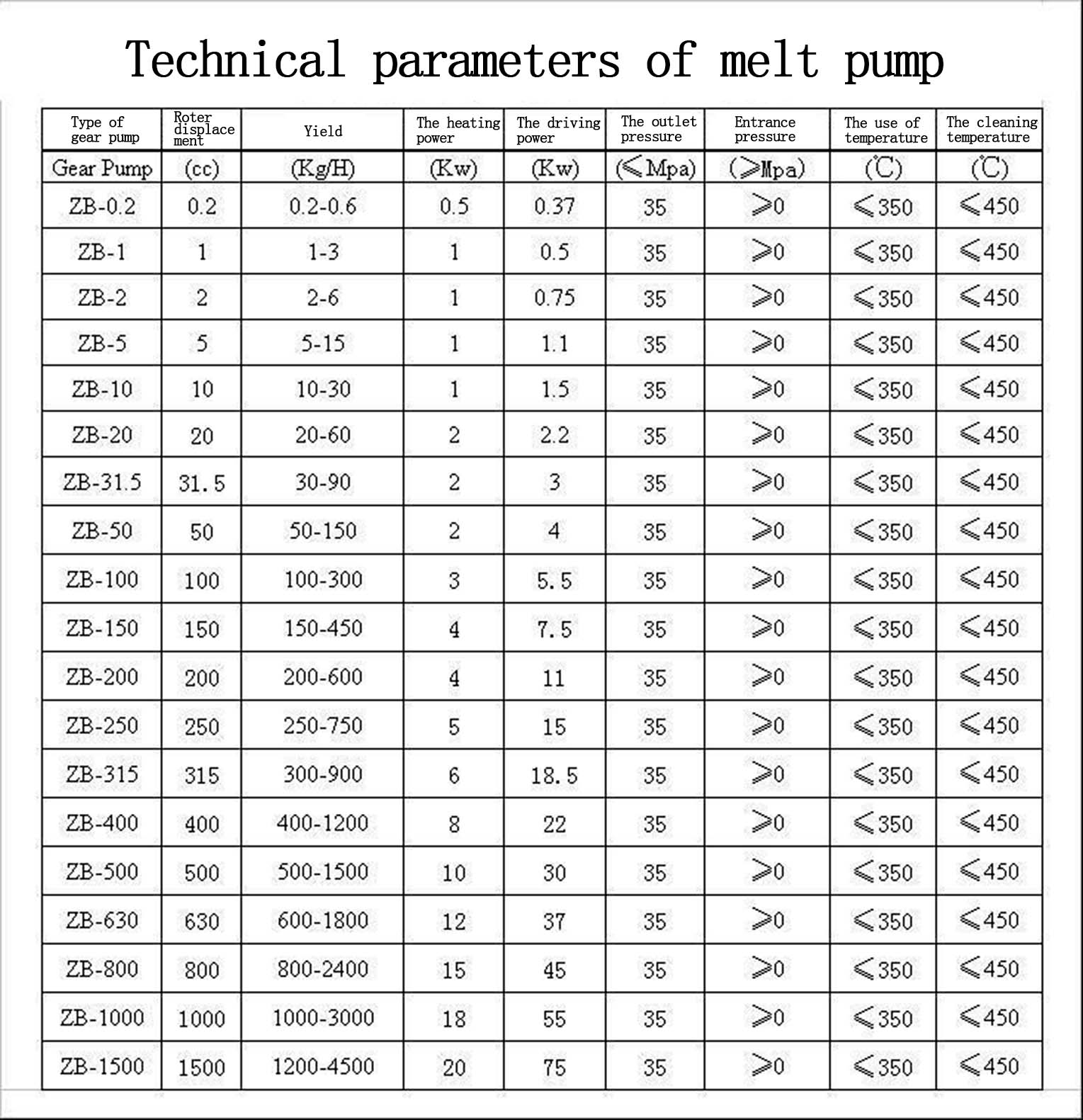

![[Click to view parameters]](/uploads/allimg/150421/1-150421114400c9.jpg){kind=link}
◆High temperature melt pump is used for transportation, pressurization or the metering of the high temperature and high viscosity polymer melt.This melt pump is applicable for engineering plastic or blown film technique.
◆High pressure melt pump have a unique positive displacement design which provides consistent, accurate polymer delivery under varying extruder output conditions of pressure, temperature and viscosity. With melt pump providing the pressure between the extruder and the die, extruder parameters can be configured to provide a homogeneous melt at increased throughout and tighter gauge tolerances.
Application of High temperature melt pump:
◆Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆Polyester for cotton-fiber, polypropylene and other chemical fiber melt.
Technical Parameter of High pressure melt pump:
◆Melt Pump Body: CPM stainless steel, Ti-Ta alloy
◆Gear: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
◆Sliding Bearing: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
◆Shaft Sealing: Screw sealing
◆Heating System: Electrical heating
Operating Parameter of High temperature melt pump:
◆Theory: Positive Displacement Gear Pump
◆Structure: Gear Pump
◆Usage: Plastic, Rubber Pump and Fiber
◆Power: Electric or Oil
◆Fuel: No Need
◆Volume Range: 5CC - 3200CC
◆Viscosity: ≤20000 Pas
◆Working Temperature: ≤510°C(950°F)
◆Cleaning Temperature: ≤590°C(1100°F)
◆Outlet Pressure:≤70Mpa
◆Differential Pressure: ≤50Mpa
> > > Click to view more of the working principle of the melt pump
