♣ Loss-in-weight Feeder

▓※ Batte Melt pump Zhengzhou Co.,Ltd > PRODUCT > Loss-in-weight Feeder >

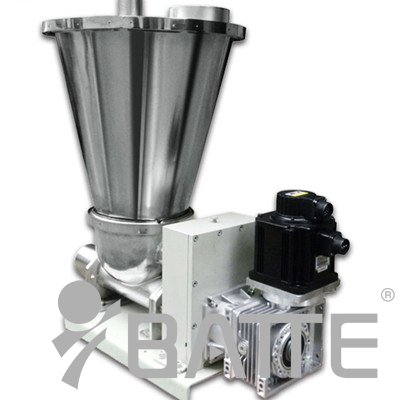

Volume type feeding machine

Author：Batte Time:2015-04-24

Application:
Suitable for granule, pill material, poor liquidity powder, small sheet, and ensure the uniform and continuous feeding.

Features:

1. This feeding machine is easy to control, and has high intelligence program.

2. You can choose different screw according with the different material to solve feed blocking.

3. Beautiful appearance, and the rolled steel contacting with material is 304 stainless steel.

4. Easy to disassembly and maintain.

5. The feeding accuracy can be controled to ±1% in any case.

6. Reduce labor strength and increase labor efficiency, inprove efficiency.

Parameters:
Single screw Volume feeding machine：

Type	Screw specification	Capacity (L/H)	Driving power (kw)	Hopper (optional)
BAT-VF-SS28	28	10-100	1.1	40-80
BAT-VF-SS38	38	30-300	1.5	40-100
BAT-VF-SS46	46	40-400	1.5	40-120
BAT-VF-SS64	64	50-500	1.5	40-150

Notes: The feeding capacity and accuracy will be affected by different materials.
Twin screw Volume feeding machine：

Type	Screw specification	Capacity (L/H)	Driving power (kw)	Hopper (optional)
BAT-VF-TS28	28	10-200	1.1	40-80
BAT-VF-TS38	38	30-400	1.1	40-100
BAT-VF-TS46	46	50-800	1.5	40-120
BAT-VF-TS64	64	60-1200	2.2	40-150

Notes: The feeding capacity and accuracy will be affected by different materials.
