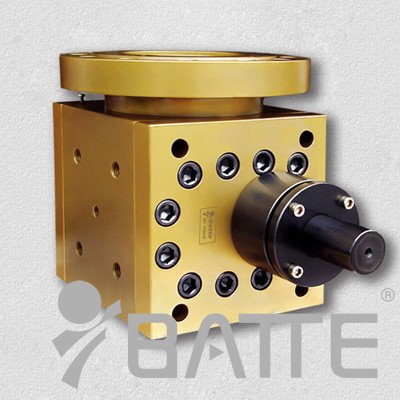

Booster melt pump

[Click to view parameters]

Introduction of Polymer melt pump
Polymer melt pump is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series of polymer gear pump is primarily applicable for ABS, PS, PET, PC, SAN, PP, PE Bioploymers etc.

Technical Parameter of Polymer gear pump
◆ Melt Pump Body: stainless steel, carbon steel, hastelloy, monel
◆ Gear: tool steel, nitrided steel, special material and wear-resistant coating
◆ Tooth profile: Straight tooth, Helical tooth, Herringbone tooth
◆ Sliding Bearing: tool steel, Ti-Ta alloy, silver-nickel, special material and wear-resistant coating
◆ Shaft Sealing: mechanical seal, Screw sealing+Packing seal, flushing fluid combined sealing
◆ Heating System: Electrical heating

Operating Parameter of High viscosity pump
◆ Theory: Positive Displacement Gear Pump
◆ Structure: Gear Pump
◆ Usage: Plastic, Rubber Pump and Fiber
◆ Power: Electric or Oil
◆ Fuel: No Need
◆ Volume Range: 0.5CC - 12000CC
◆ Viscosity: ≤40000 Pas
◆ Working Temperature: ≤400°C(750°F)
◆ Cleaning Temperature: ≤450°C(850°F)
◆ Inlet Pressure: Vacuum--1.5MPa
◆ Outlet Pressure: 40Mpa

Application High viscosity pump
◆ Polymer extrusion molding, such as granulation, film, pipe, plate, sheet, etc;
◆ High-viscosity materials such as PC, PMMA, ABS, HIPS, PET, PVB, PS, PP, PA, PE, PVA .etc;
◆ Rubber, asphalt, paint, adhesives, coatings, lubricants, polyalcohol, non-particulate impurities;
◆ Polyester for cotton-fiber, polypropylene and other chemical fiber melt.
